QUINT-PS/ 1AC/12DC/15
Active signal outputs
Output 12 V D C
The 5 ... 12 V DC signal is applied between the "DC OK" and
the "–" connection terminal blocks or between "I < I N " and "–"
and can carry up to 20 mA. By switching from "active high" to
13
14
+ + - - -
"low", the DC OK signal output signalizes when the output
voltage is fallen short of by more than 10 %.
The DC OK signal is decoupled from the power output. It is
5 ... 12 V D C
20 mA
D C OK
thus not possible for devices connected in parallel to act as an
external power supply.
The 5 ... 12 V DC signal can be directly connected to a logic
input for evaluation.
The POWER BOOST signal output signalizes that the
nominal current is exceeded.
Signal loop

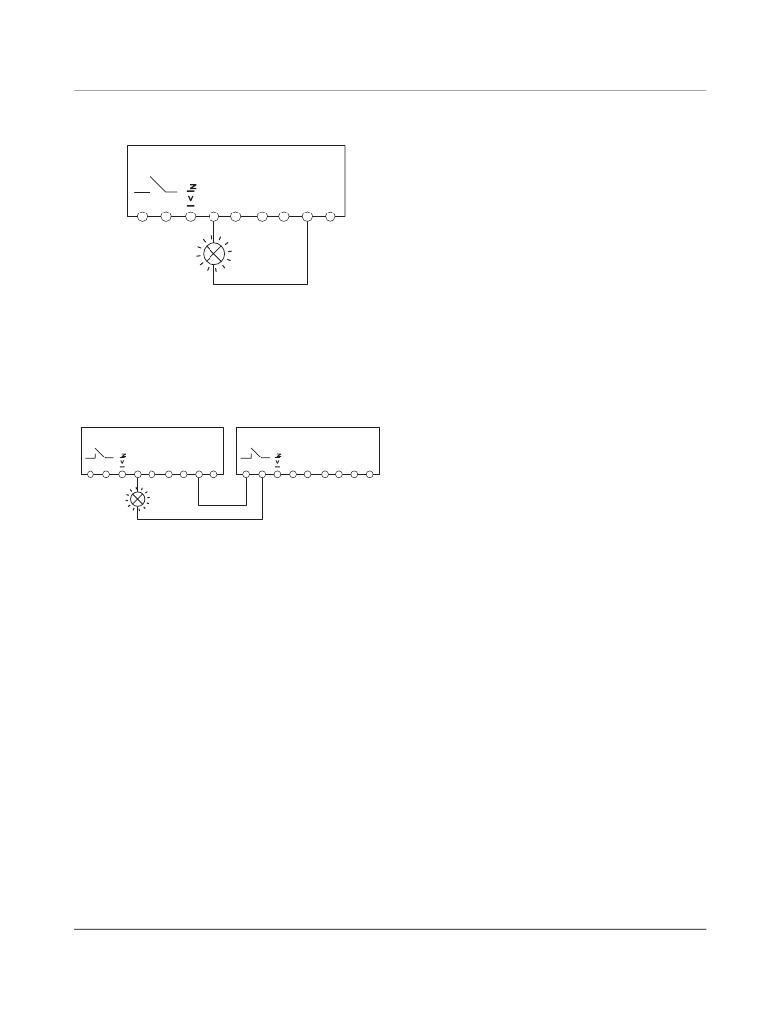

Monitoring two devices: Use the active signal output of device
1
Output 12 V DC
2
Output 12 V DC
1 and loop in the floating signal output of device 2. In the event
of malfunctioning, a common alarm is output. Any number of
devices can be looped in. This signal combination saves
13
14
+ + - - -
13
14
+ + - - -
wiring costs and logic inputs.
DC OK
103382_en_01
